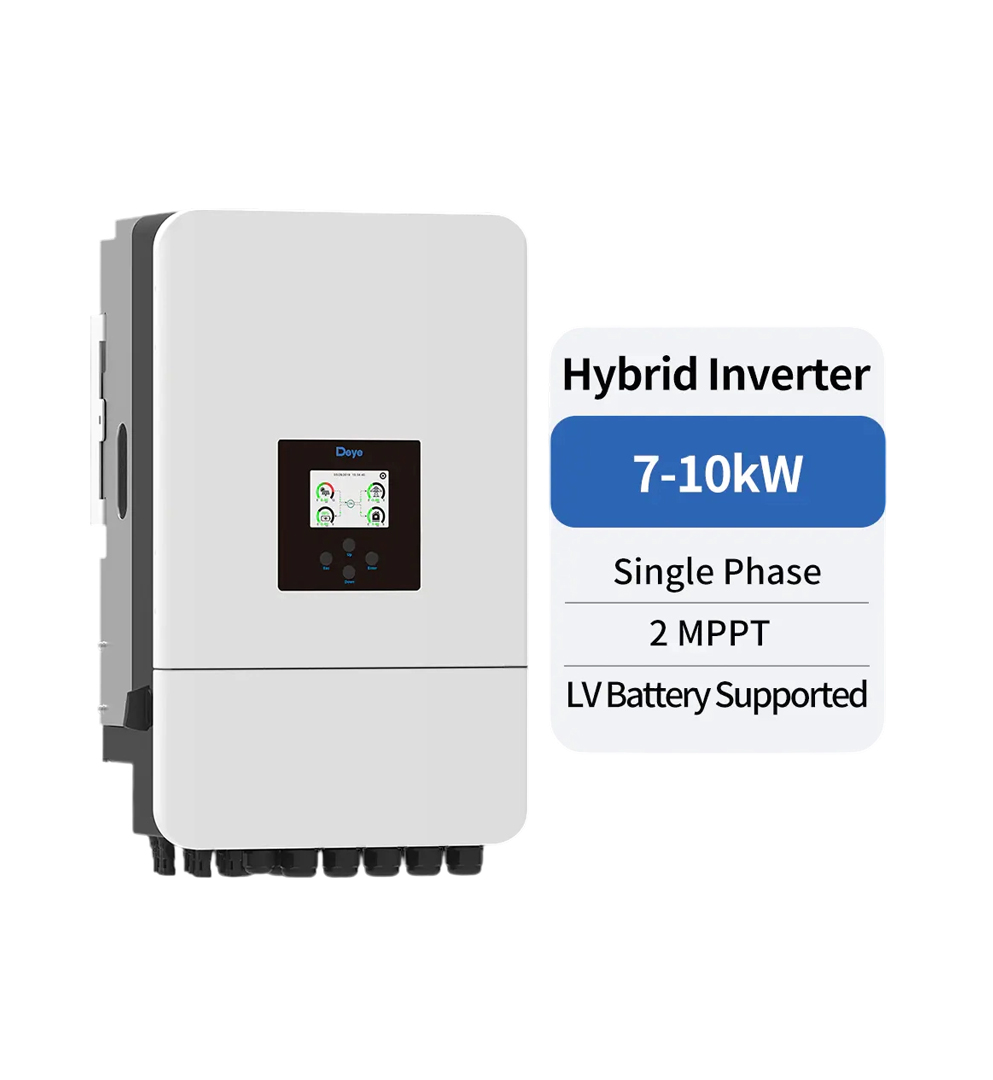

Deye Single Phase Inverter 8kw 10kw Hybrid Inverter for Home Energy System

SUN-8K/10K-SG05LP1-EU-SM2

  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofifit existing solar system
  • Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 140A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
Detailed Information
Product Introduction


PRODUCT PARAMETERS


ModelSUN-7K-SG05LP1-EU-SM2SUN-7.6K-SG05LP1-EUSUN-8K-SG05LP1-EU-SM2SUN-10K-SG05LP1-EU-SM2
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range(V)40-60
Max.Charging Current(A)175190190210
Max.Discharging Current(A)175190190210
Charging Strategy for Li-ion BatterySelf-adaption to BMS
Number of battery input1
PV String Input Data
Max. PV Access Power (W)14000152001600020000
Max PV Input Power（W）11200121601280016000
Max PV Input Voltage（V）500
Start-up Voltage（V）125
MPPT Voltage Range（V）150-425
Rated PV Input Voltage(V)370
Max Input Short-Circuit Current（A）34+34
Max Operating PV Input Current（A）26+26
No.of MPP Trackers/No.of String Per MPP Tracker2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）70007600800010000
Max AC Input/Output Apparent Power （VA）77008360880011000
Peak Power (off-grid)（W）2 times of rated power,10s
Rated AC Input/Output Current（A）31.9/30.534.5/33.136.4/34.845.5/43.5
Max AC Input/Output Current（A）35/33.538/36.440/38.350/47.9
Max Continuous AC Passthrough (grid to load)（A）50

Rated Input/Output Voltage/Range(V)220V/230 0.85Un-1.1Un
Grid Connection FormL+N+PE
Rated Input/Output Grid Frequency/Range50Hz/45Hz-55Hz     60Hz/55Hz-65Hz
Power Factor Adjustment Range0.8 leading-0.8lagging
Total Current Harmonic Distortion THDi<3% (of nominal power)
DC Injection Current<0.5%ln
Efficiency
Max Efficiency97.6%
Euro Efficiency96.5%
MPPT Efficiency＞99%
Equipment Protection
IntegratedDC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection LevelTYPE II(DC),TYPE II(AC)
Interface
Communication InterfaceRS485/RS232/CAN
Monitor ModeGPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity0~100%
Permissible Altitude2000m
Noise＜30 dB(A)
Ingress Protection(IP) RatingIP 65
Inverter TopologyNon-Isolated
Over Voltage CategoryOVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm]366×589.5×237 (Excluding Connectors and Brackets)
Weight[kg]26.8
Warranty5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of CoolingIntelligent air cooling
Grid RegulationIEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
