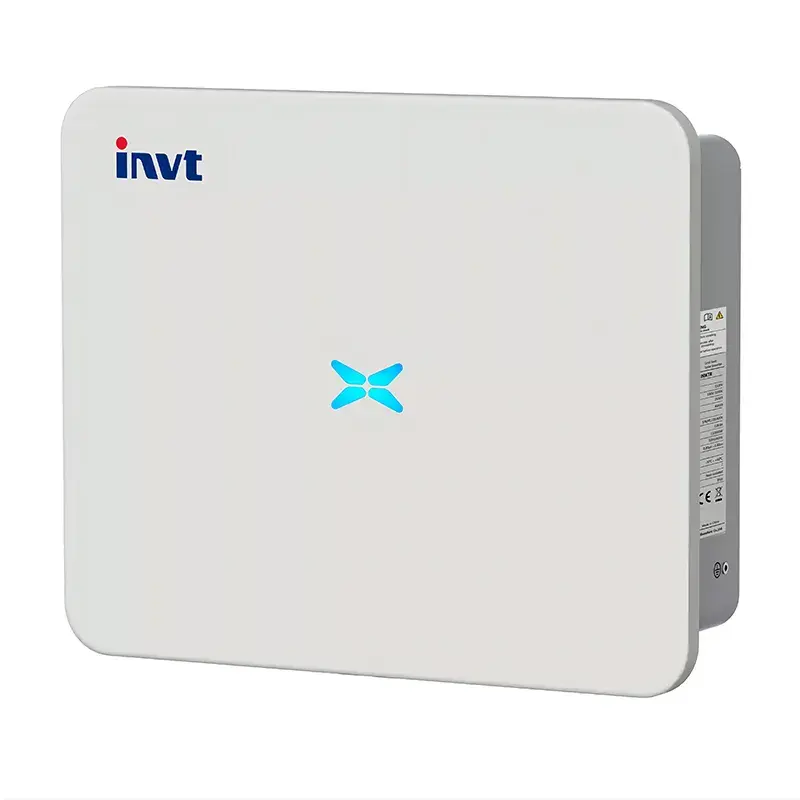

10kw INVT Three Phase On-Grid Solar Inverter & converters grid tie inverter with limiter for home use
10kw INVT Three Phase On-Grid Solar Inverter & converters grid tie inverter with limiter for home use
2MPP Trackers, high single circuit tracking accuracy, fast dynamic response.
2MPP Trackers, high single circuit tracking accuracy, fast dynamic response.
Key Feature
The three-phase grid-connected inverter is suitable for small households and small commercial power stations. It has a simple and stylish design and is equipped with an intelligent data monitoring platform to create a new power consumption experience for users.
Detailed Information
Efficient
Higher revenue
Higher revenue
- 2MPP Trackers, high single circuit tracking accuracy, fast dynamic response.
- 160% DC Input Oversizing
- Wide MPPT voltage range: 180V-1000V
- Compatible with high power modules
lntelligent
Simple O&M
- Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
- Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
- Support RS485/USB (WiFi/GPRS/Ethernet optional): remote monitoring and operation via PC or mobile phones
Reliable
Worry free
- IP66 Protection degree: support outdoor installation
- DC & AC Type II SPD: prevent lightning damage
- AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
Product specifications
| XG5KTR | XG10KTR | XG15KTR | |
| Input (DC) | |||
| Max. Input Power | 8kW | 16kW | 24kW |
| Max. Input Voltage | 1100V | ||
| Start Voltage | 160V | ||
| Rated Input Voltage | 600V | ||
| MPPT Voltage Range | 180V ~ 1000V | ||
| Number of String per MPPT | 2 | ||
| Output (AC) | |||
| Max. Output Current | 8A | 15.9A | 23.9A |
| Rated Output Power | 5kW | 10kW | 15kW |
| Rated Grid Voltage | 230Vac / 400Vac, 3L / N / PE | ||
| Rated Grid Frequency | 50Hz / 60Hz | ||
| Power Factor | >0.99 (0.8 leading~0.8 lagging) | ||
| THDi | ＜3% (Rated Power) | ||
| Efficiency | |||
| Max. Efficiency | 98.40% | 98.70% | |
| European Efficiency | 98.30% | 98.50% | |
| MPPT Efficiency | 99.90% | ||
| Protection | |||
| DC reverse polarity protection | Yes | ||
| Grid monitoring | Yes | ||
| Surge protection | Type II | ||
| AFCI protection | Optional | ||
| Communication | |||
| Display | LED / LCD / WiFi+App | ||
| Communication | Standard：RS485 / USB Optional：WiFi / GPRS / Ethernet | ||
| Standard Compliance | |||
| Grid Connection Standards | IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4105:2018, VDE-AR-N 4120:2018, EN 50549, AS/NZS 4777.2:2020, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEA/PEA, C10/11, G98/G99 | ||
| Safety / EMC | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | ||
| General Data | |||
| Dimensions (W x H x D) | 481 x 395 x 195 mm | ||
| Weight | 12kg | 13.5kg | |
| Operation Temperature | -30° C ~ +60° C | ||
| Cooling Method | Natural | Smart Cooling | |
| Protection Degree | IP66 | ||
| Max. Operating Altitude | 4000m | ||
| Relative Humidity | 0~100% | ||
| Topology | Transformerless | ||
| Night Power Consumption | ＜1W | ||
