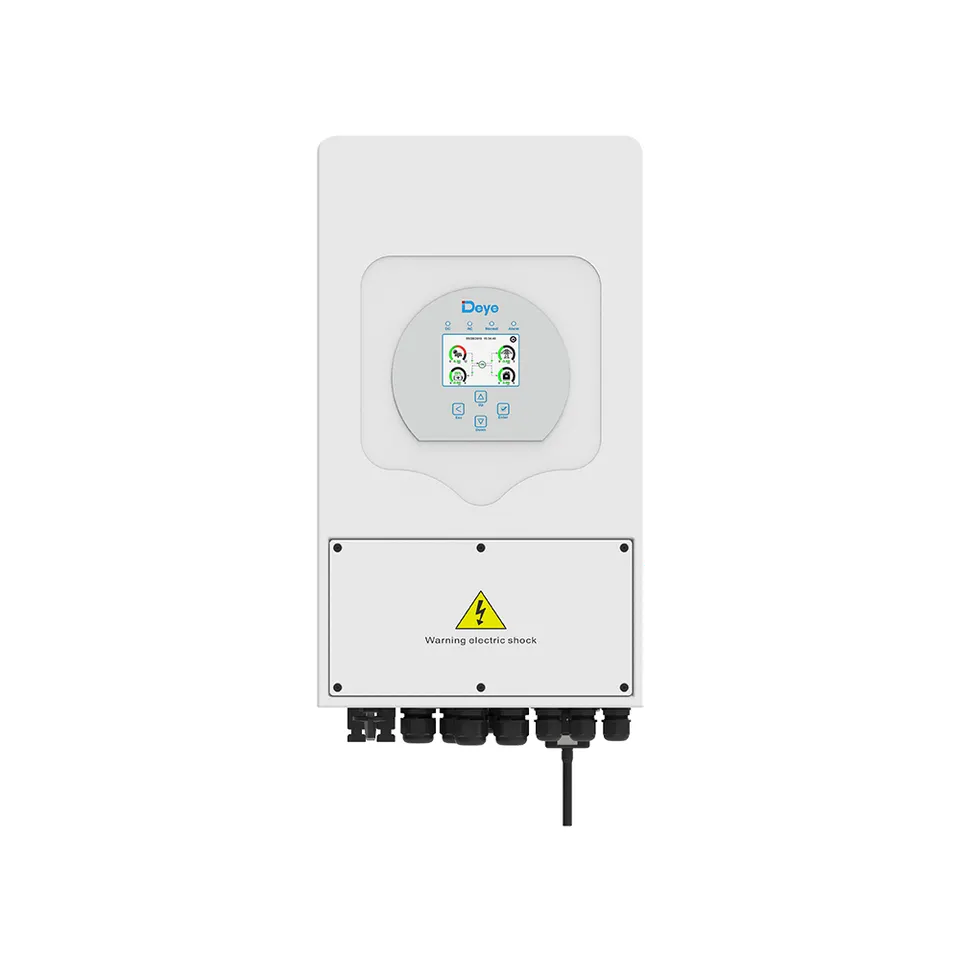

8kw Deye Hybrid Solar Inverter SUN-8K-SG01LP1-EU pure sine wave single three Phase Inverters For Solar Storage System
8kw Deye Hybrid Solar Inverter SUN-8K-SG01LP1-EU pure sine wave single three Phase Inverters For Solar Storage System
Colorful touch LCD, IP65 protection degree
Colorful touch LCD, IP65 protection degree
Key Feature
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Detailed Information
1、Colorful touch LCD, IP65 protection degree
2、DC couple and AC couple to retrofifit existing solar system
3、Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
4、Max. charging/discharging current of 190A
5、6 time periods for battery charging/discharging
6、Support storing energy from diesel generator
Product specifications
| SUN-7.6K -SG01LP1-EU | SUN-8K -SG01LP1-EU | |
| Battery Input Data | ||
| Battery Voltage Range (V) | Lead-acid or Lithium-ion | |
| Max. Input Voltage | 40-60 | |
| Max. Charging Current (A) | 190 | |
| Max. Discharging Current (A) | 190 | |
| External Temperature Sensor | Yes | |
| Charging Curve | 3 Stages / Equalization | |
| PV String Input Data | ||
| Max. DC Input Power (W) | 9880 | 10400 |
| Rated PV Input Voltage (V) | 370 (125-500) | |
| Start-up Voltage (V) | 125 | |
| MPPT Voltage Range (V) | 150-425 | |
| Full Load DC Voltage Range (V) | 200-425 | |
| No.of MPP Trackers | 2 | |
| AC Output Data | ||
| Rated AC Output Active Power (W) | 7600 | 8000 |
| Max AC Output Active Power (W) | 8360 | 8800 |
| AC Output Rated Current (A) | 34.5/33 | 36.4/34.8 |
| Max AC Output Current (A) | 38/36.3 | 40/38.3 |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase), L/N/PE 220/230Vac (single phase) | |
| Grid Type | Split Phase; 2/3 phase; Single Phase | |
| Total Harmonic Distortion (THD) | <3% (of nominal power) | |
| Efficiency | ||
| Max. Efficiency | 97.60% | |
| European Efficiency | 97.00% | |
| MPPT Efficiency | 99.90% | |
| Protection | ||
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | |
| Over Voltage Category | DC Type II/AC Type III | |
| Certififications and Standards | ||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |
| General Data | ||
| Operating Temperature Range (℃) | -40-60℃, >45℃ Derating | |
| Cooling | Smart Cooling | |
| Noise (dB) | ≤30 dB | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 32 | |
| Cabinet Size (WxHxD mm) | 420×670×233 (Excluding Connectors and Brackets) | |
| Protection Degree | IP65 | |
| Installation Style | Wall-mounted | |
| Warranty | 5 Years (10 Years Optional) | |
