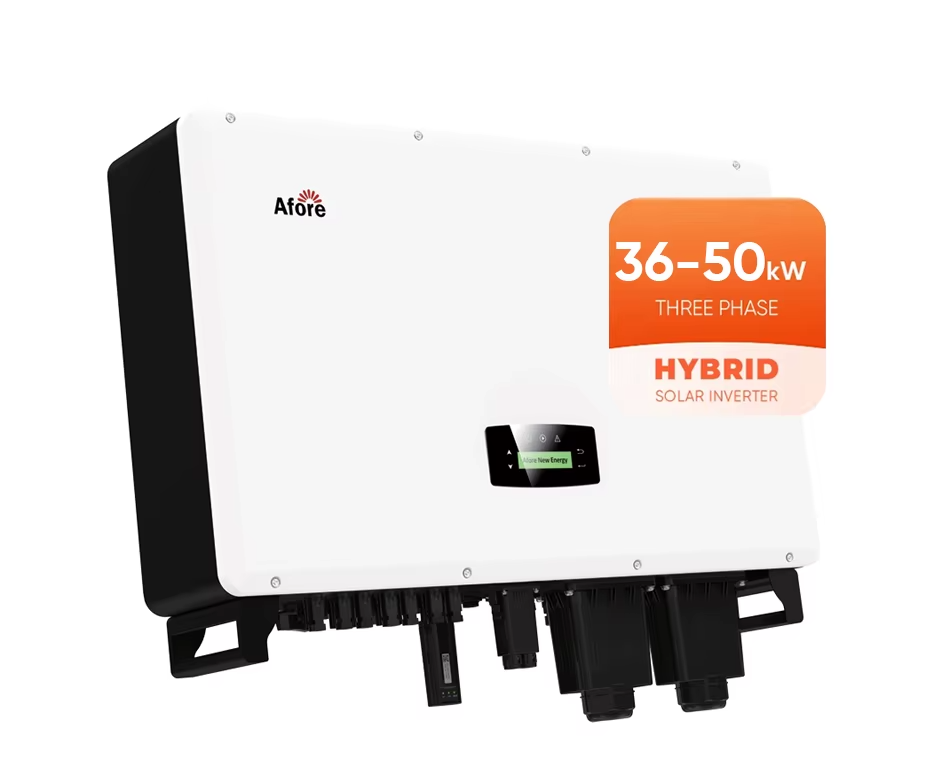

Afore 36KW 40kW 50KW Three Phase Hybrid Inverters Commercial Industrial Storage Solution Hybrid Inverter
Afore 36KW 40kW 50KW Three Phase Hybrid Inverters Commercial Industrial Storage Solution Hybrid Inverter
AF50K-TH
AF50K-TH
- Support for Time-of-use Optimization
- Configurable Operation Modes
- AFCl (Optional) & Rapid Shutdown Ready
Detailed Information
Product Description
Specification
| Model | AF36K-TH | AF40K-TH | AF50K-TH |
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 150 - 800 | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Max. PV Input Power (KW) | 54 | 60 | 75 |
| Max. PV Input Voltage (V) | 1000 | ||
| MPPT Voltage Range (V) | 150-850 | ||
| Rated PV Input Voltage (V) | 620 | ||
| Rated AC Input/Output Active Power (KW) | 72/39.6 | 80/44 | 100/55 |
| Rated AC Input/Output Current (A) | 60.06 | 66.77 | 83.38 |
| Peak Power (off-grid) (W) | 39600VA, 60s | 44000VA, 60s | 55000VA, 60s |
| Nominal Output Voltage (V) | 230 / 400 | ||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/60 | ||
| Surge Protection Level | TYPE II | ||
| Monitor Mode | LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G | ||
| Ingress Protection(IP) Rating | IP 66 | ||
| Noise (dB) | < 60 | ||
| Weight (kg) | 70 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||
