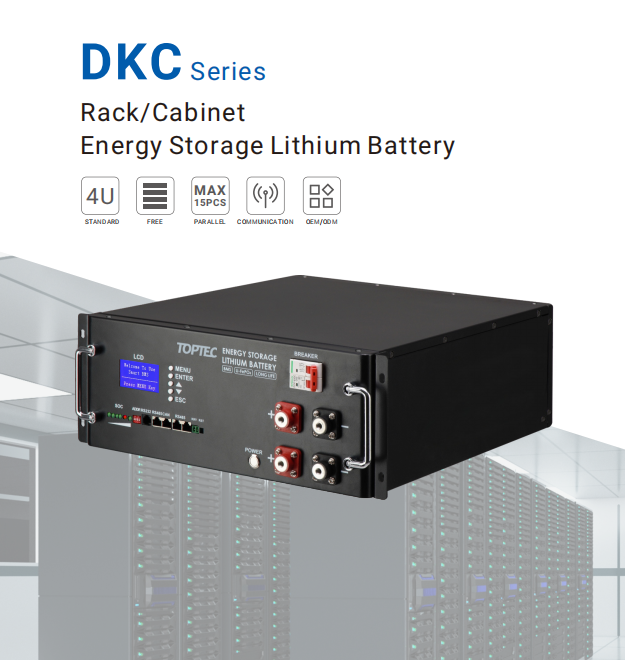

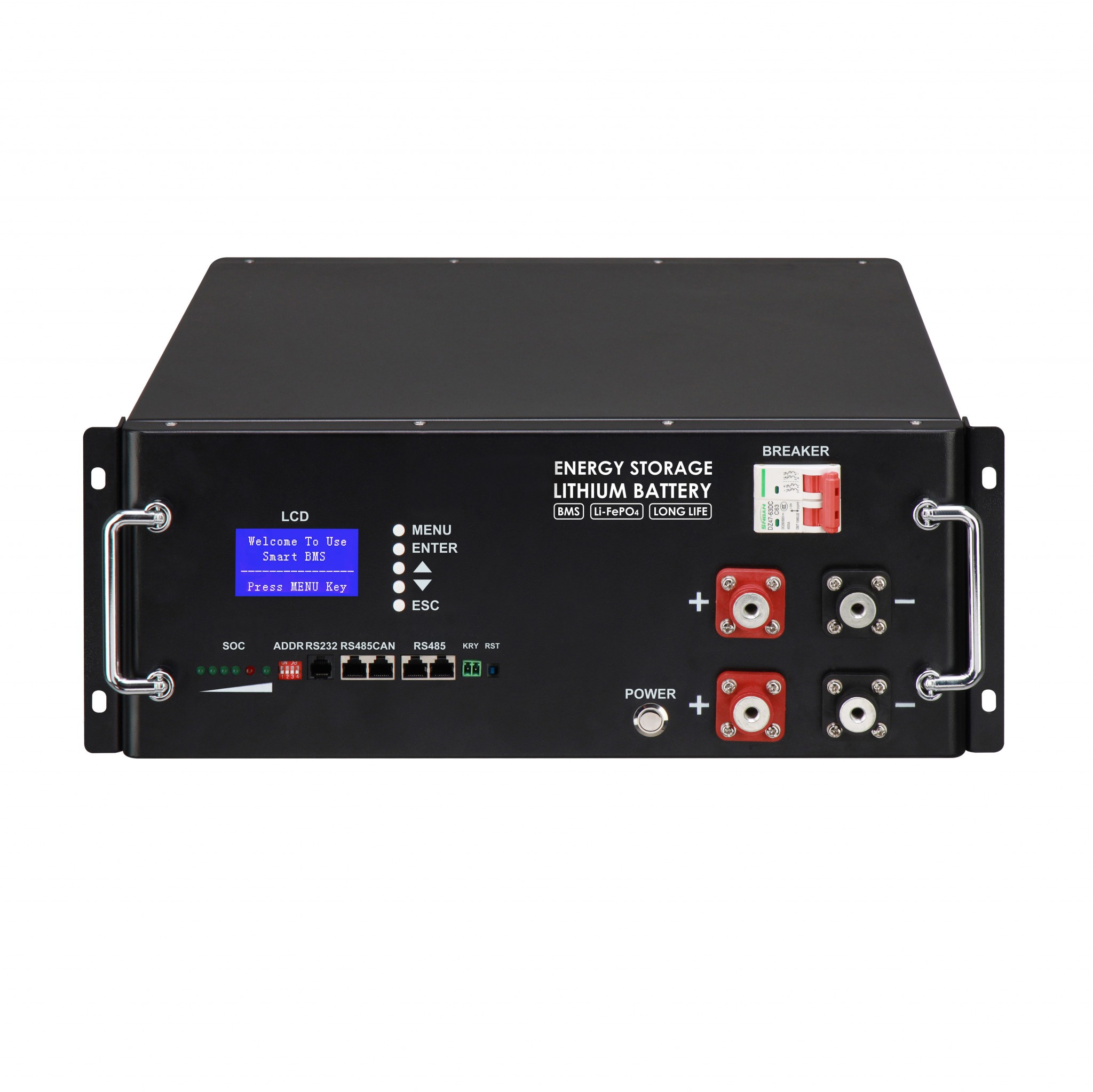

solar lithium battery factory 48v lifepo4 battery

SSS solar lithium battery factory 48v lifepo4 battery lithium ion battery 48v 100ah
+ 查看更多

Key Feature

*High power,friendly interface,free combination

*A+battery cell, precise combination
*CAN/RS485/WIFI/4G/Blue tooth communication

*BMS customization supported

*Thick shell,well protection for inside cells

Detailed Information

Product specifications

MODEL	DKC4850		DKC48100		DKC48200
Specification	48V50Ah	51.2V50Ah	48V100Ah	51.2V100Ah	48V200Ah	51.2V200Ah
Combination	15S1P	16S1P	15S1P	16S1P	15S1P	16S1P
Capacity	2.4KWh	2.56KWh	4.8KWh	5.12KWh	9.6KWh	10.24KWh
Standard discharge current	50A	50A	50A	50A	50A	50A
Max. discharge current	100A	100A	100A	100A	100A	100A
Working voltage range	40.5-54VDC	43.2-57.6VDC	40.5-54VDC	43.2-57.6VDC	40.5-54VDC	43.2-57.6VDC
Standard Voltage	48VDC	51.2VDC	48VDC	51.2VDC	48VDC	51.2VDC
Max. charging current	50A	50A	50A	50A	100A	100A
Max. charging voltage	54V	57.6V	54V	57.6V	54V	57.6V
Cycle	3000~6000cycles @DOD 80%/25℃/0.5C
Working humidity	65±20%RH
Operating temperature	-10~+50℃
Working altitude	≤2500m
Cooling method	Natural cooling
Installation	Cabinet/Rack Mount
Protection level	IP20
Max of parallel	15PCS
Warranty	5~10 Years
Communication	Default：RS485/RS232/CAN Optional：WiFi/4G/Bluetooth
Certified	CE ROHS FCC UN38.3 MSDS
Product Size	44049588mm		440495178mm		440590178mm
Package Size	555500130mm		555500235mm		480650220mm
Net weight	25kg	37kg	41kg	45kg	101kg	105kg
Gross weight	30kg	42kg	49kg	55kg	111kg	115kg
