550W

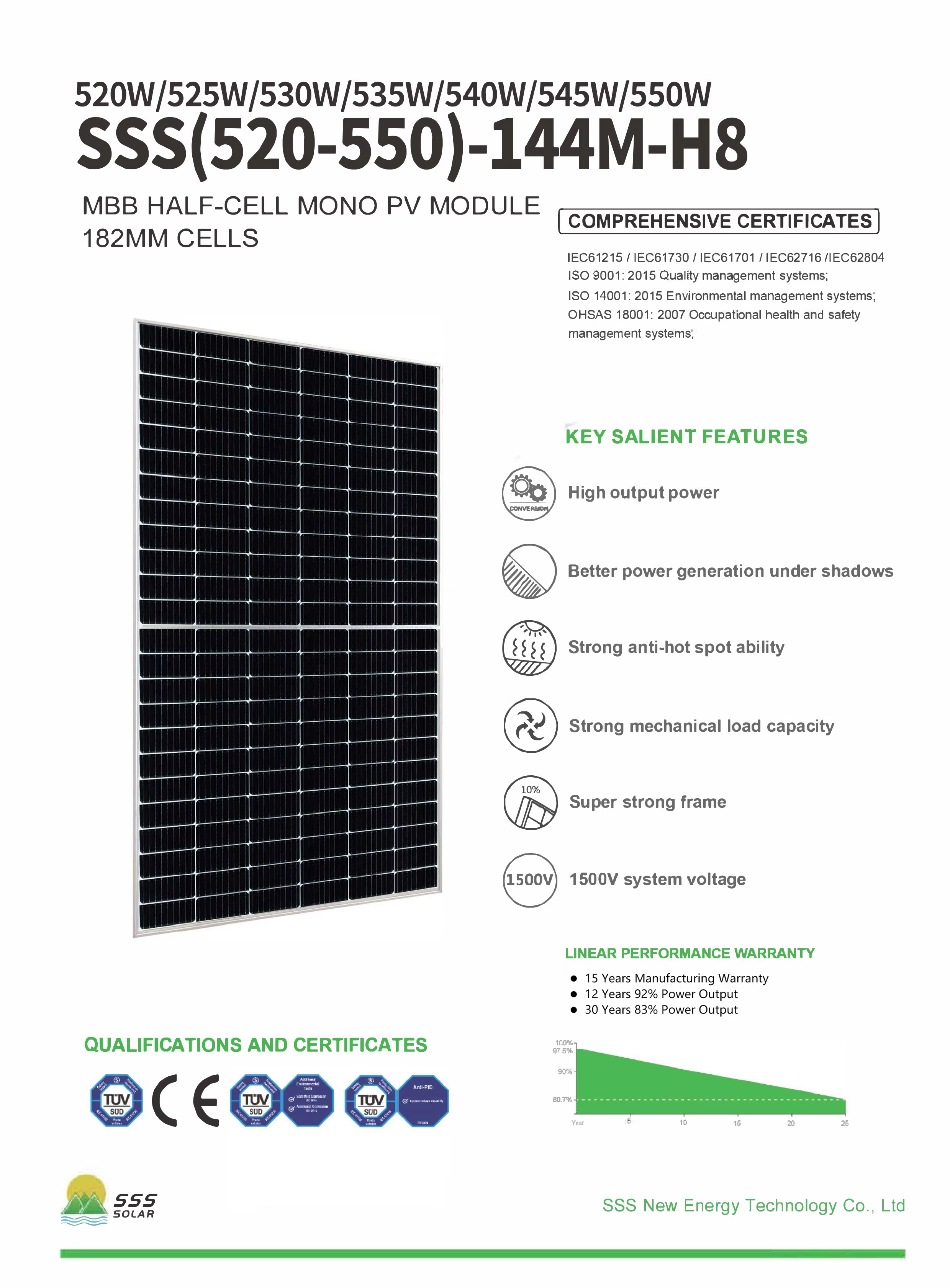

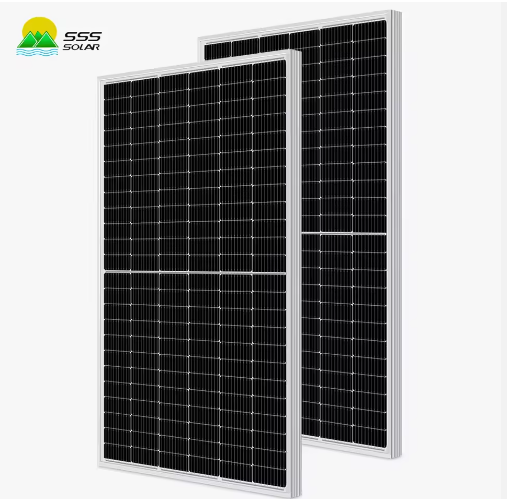

Factory Direct Supply SSS Solar Panel 550 Mono Half-cell PV Module 550w Solar Panels

550W solar panel P-Type

  • High output power
  • Better power generation under shadows
  • Strong anti-hot spot ability
  • Strong mechanical load capacity
  • 1500V system voltage
  • Super strong frame
Detailed Information
Product Descripation



31pcs/pallet & Dimension：2279*1134*35mm

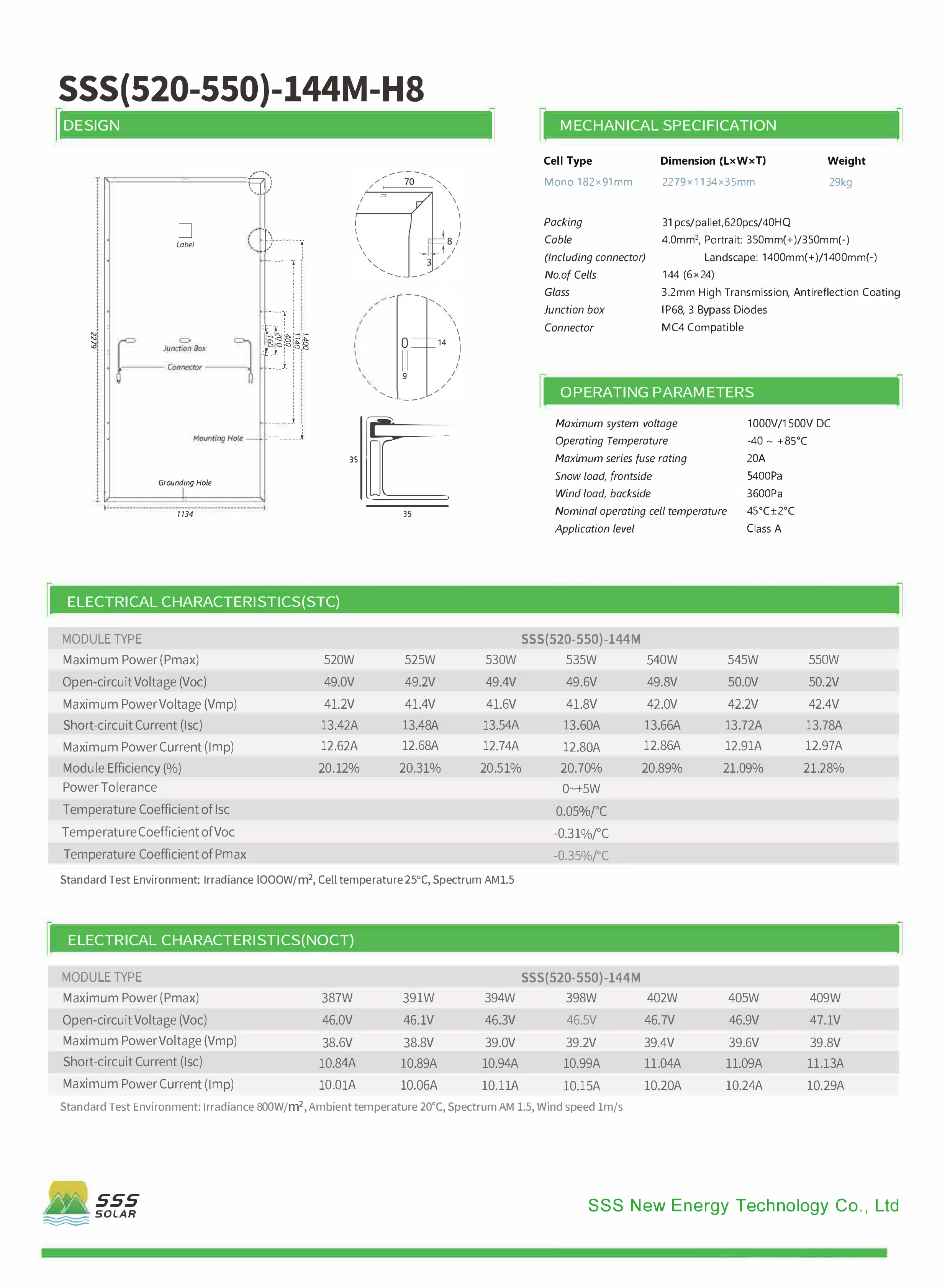

ELECTRICAL CHARACTERISTICS(STC)
MODULE TYPE
SSS(520-550)-144M
Maximum Power (Pmax)
520W
525W
530W
535W
540W
545W
550W
Open-circuit Voltage (Voc)
49.0V
49.2V
49.4V
49.6V
49.8V
50.0V
50.2V
Maximum Power Voltage (Vmp)
41.2V
41.4V
41.6V
41.8V
42.0V
42.2V
42.4V
Short-circuit Current (Isc)
13.42A
13.48A
13.54A
13.60A
13.66A
13.72A
13.78A
Maximum Power Current (Imp)
12.62A
12.68A
12.74A
12.80A
12.86A
12.91A
12.97A
Module Efficiency (%)
20.12%
20.31%
20.51%
20.70%
20.89%
21.09%
21.28%
Power Tolerance
0~+5W
Temperature Coefficient of lsc
0.05%/℃
Temperature Coefficient of Voc
-0.31%/℃
Temperature Coefficient of Pmax
-0.35%/℃
Standard Test Environment : lrradiance 1000W/m, Cell temperature 25"C Spectrum AM1.5
ELECTRICAL CHARACTERISTICS(NOCT)
MODULE TYPE
SSS(520-550)-144M
Maximum Power(Pmax)
387W
391W
394W
398W
402W
405W
409W
Open-circuit Voltage (Voc)
46.0V
46.1V
46.3V
46.5V
46.7V
46.9V
47.1V
Maximum Power Voltage (Vmp)
38.6V
38.8V
39.0V
39.2V
39.4V
39.6V
39.8V
Short-circuit Current (sc)
10.84A
10.89A
10.94A
10.99A
11.04A
11.09A
11.13A
Maximum Power Current (Imp)
10.01A
10.06A
10.11A
10.15A
10.20A
10.24A
10.29A
Standard Test Environment : lrradiance 800W/m?, Ambient temperature 20"C, Spectrum AM1.5, Wind speed 1m/s
